Marine intelligent lifeboat

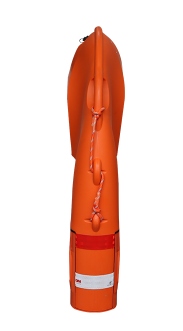

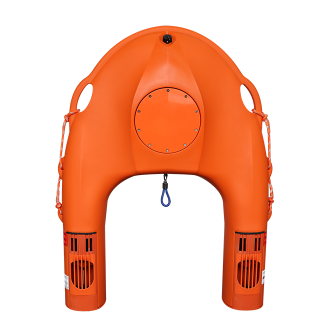

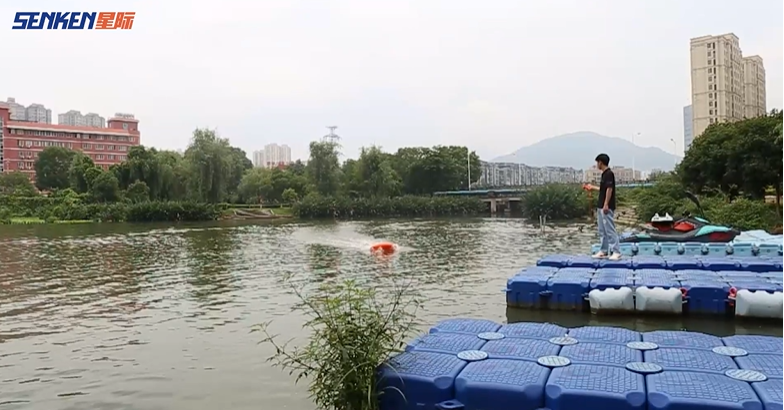

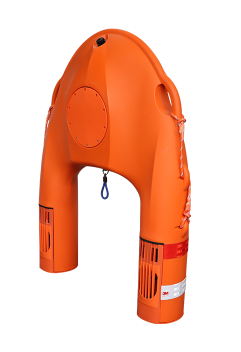

Introduction：The Smart Water Lifeboat is rugged and can be launched from a boat, shore or aircraft to quickly rescue people in the water. It has the ability to search, rescue and bring back to shore the whole process of rescue.

Product overview

1, GPS Beidou dual positioning

SAS-01 intelligent lifeboat adopts a new generation of GPS/ Beidou dual positioning system, positioning faster and more accurate, real-time positioning, positioning more comprehensive.

2. LQR tracking control

The ontology supports automatic LQR tracking control system.

3. Self-correcting course

If the course deviates due to strong wind and waves, it will automatically correct the course and drive normally.

4, lost contact automatic return

In the rescue process, if the intelligent life buoy encounters signal interference, exceeds the remote control distance and other reasons cause loss of contact, the intelligent life boat will automatically start the automatic return mode of loss of contact and return to the original starting point.

5. Drive on both sides

Support positive and negative driving on both sides, if the fuselage is turned over in strong winds and storms, it can be driven normally after turning over, and has the rescue ability in big waves.

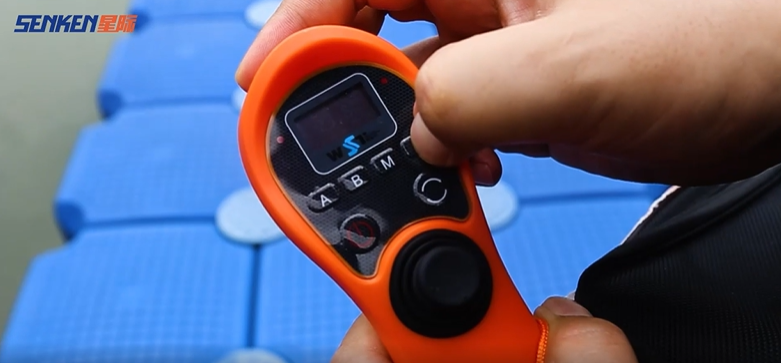

6, remote control

The intelligent lifeboat uses a one-hand remote control, and the equipment has a long communication distance, which can achieve ultra-long distance control over 800-1000 meters. It is easy to operate and can control the route of the surface rescue boat.

Specification parameter

1, overall size: length 1000mm* width 790mm* height 220mm (±5mm);

2, weight (including battery) : 12.21kg, wind wave resistance 5;

3, water speed: 6.2m/s, manned speed: 2.2m/s;

4, motor power: the use of dual motors as thrusters, a single motor power of 1.5kw;

5, the maximum buoyancy of the manned 255kg, can simultaneously rescue 4 adults weighing 70kg;

6, water forward driving force of 12kg;

7. Power supply: two lithium polymer batteries are used for power supply, and the continuous working time of the two batteries is 55min;

8. Application scenario: Public security, emergency management, fire department, maritime Safety Bureau, water rescue association, civil rescue organization, etc.
