LED Vehicle-Mounted Lighting Equipment SITE SCAN CFX252600

2025-01-09

The vehicle-mounted mobile lighting equipment is a series of lighting equipment with a height of 2.5m when the lifting gas mast is raised. Suitable for medium-sized special vehicles such as communication command vehicles, lighting vehicles, rescue vehicles, fire fighting vehicles, etc.




Power box outline drawing

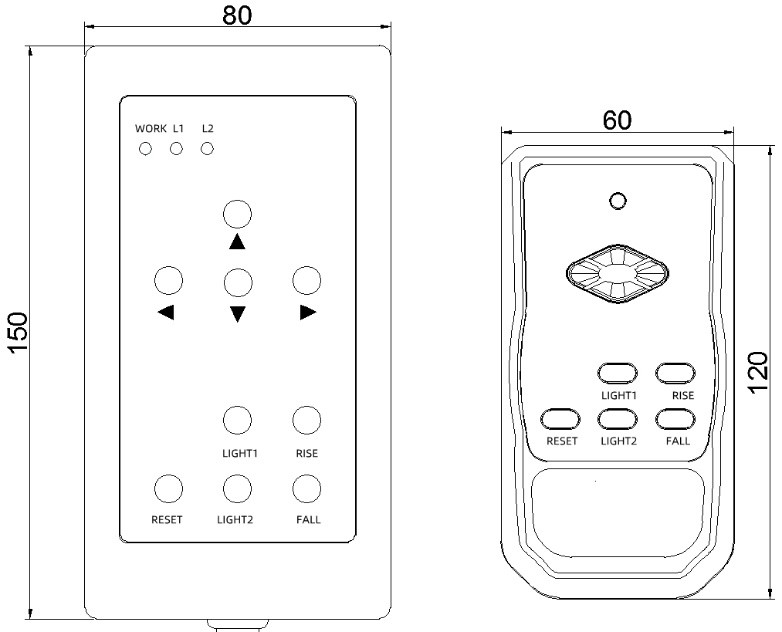

Controller figuration drawing

Parameters:

System working voltage

DC12V or DC24V

Lamp working voltage

AC220V

Mast height

Adjustable up to 2.5m approx

Light source

LED

Lamp type

Floodlight

Lamp working current

≤6A±1A

Lamp rotating working curren

≤2 A (max)

Lamp power

2PCS 600W

Lamp luminous flux

126,000 Lm

Horizontal rotary angle

380 degree

Vertical rotary angle

330 degree

Control way

With light and system controller of wired and wireless remote

Cable Position

External cables
