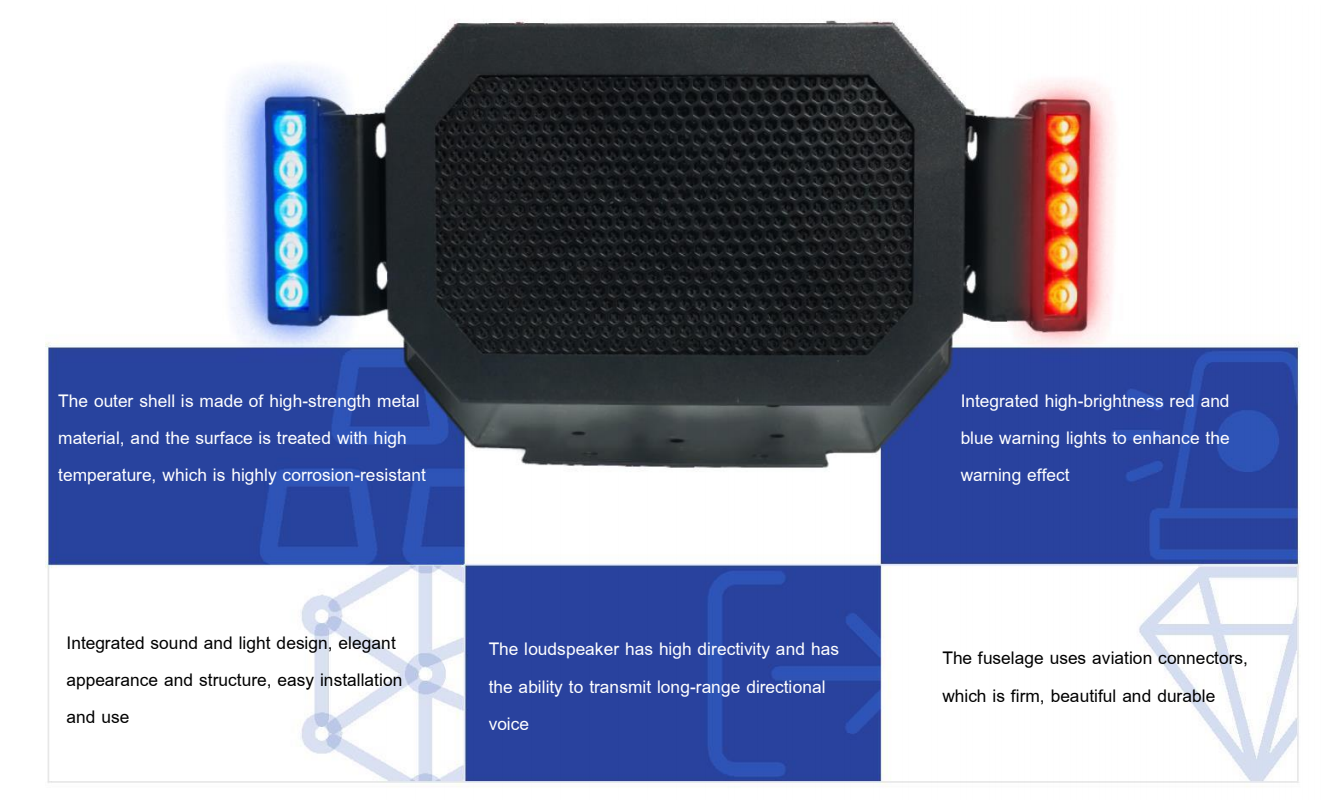

CKY-100-SK01-SG Vehicle-mounted sound and light integrated disperser

2025-04-17
{当前产品的产品关键词轮巡使用}

Main Parameter:

Rated power of the loudspeaker

100W

Rated impedance

11Ω

Directivity

（H×V）：20°*15°@-3dB

Frequency response range

300-12KHZ

Harmonic distortion

≤5%

Max sound pressure level

≥133dB±3db@1m

Sound propagation distance

1000m@ Ambient noise≤70db

Speech intelligibility

≥96%@100m

Warning light power

5W*2

Warning light operating voltage

10-14.5V

Warning light operating current

0.3A

Operating temperature

-40℃ -- +55℃

Appearance dimensions

420*267*229（mm）

Net weight

10.5Kg
