Newly Launched YD - 100 - 32 Speaker Boasts Impressive Features and Performance

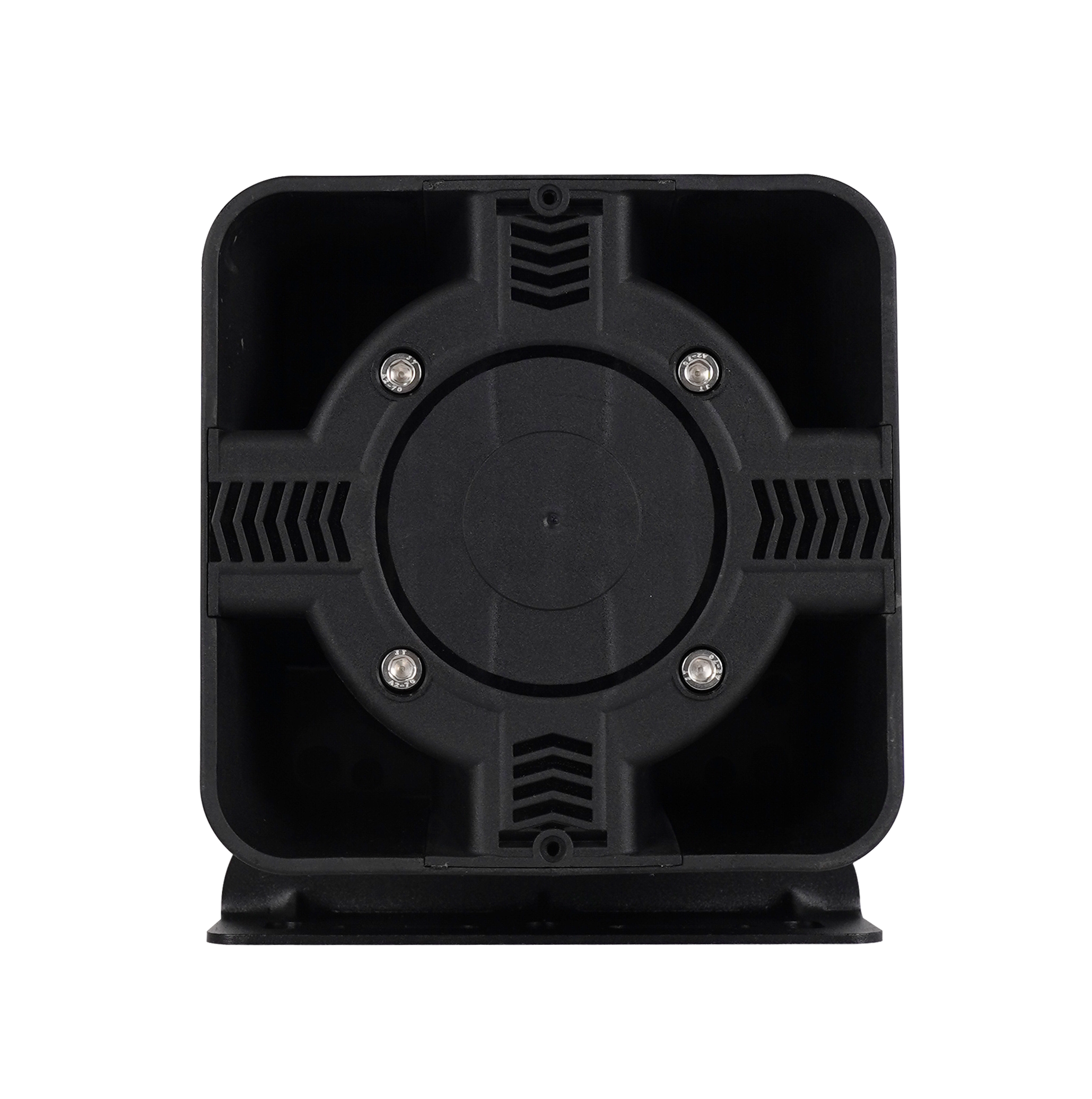

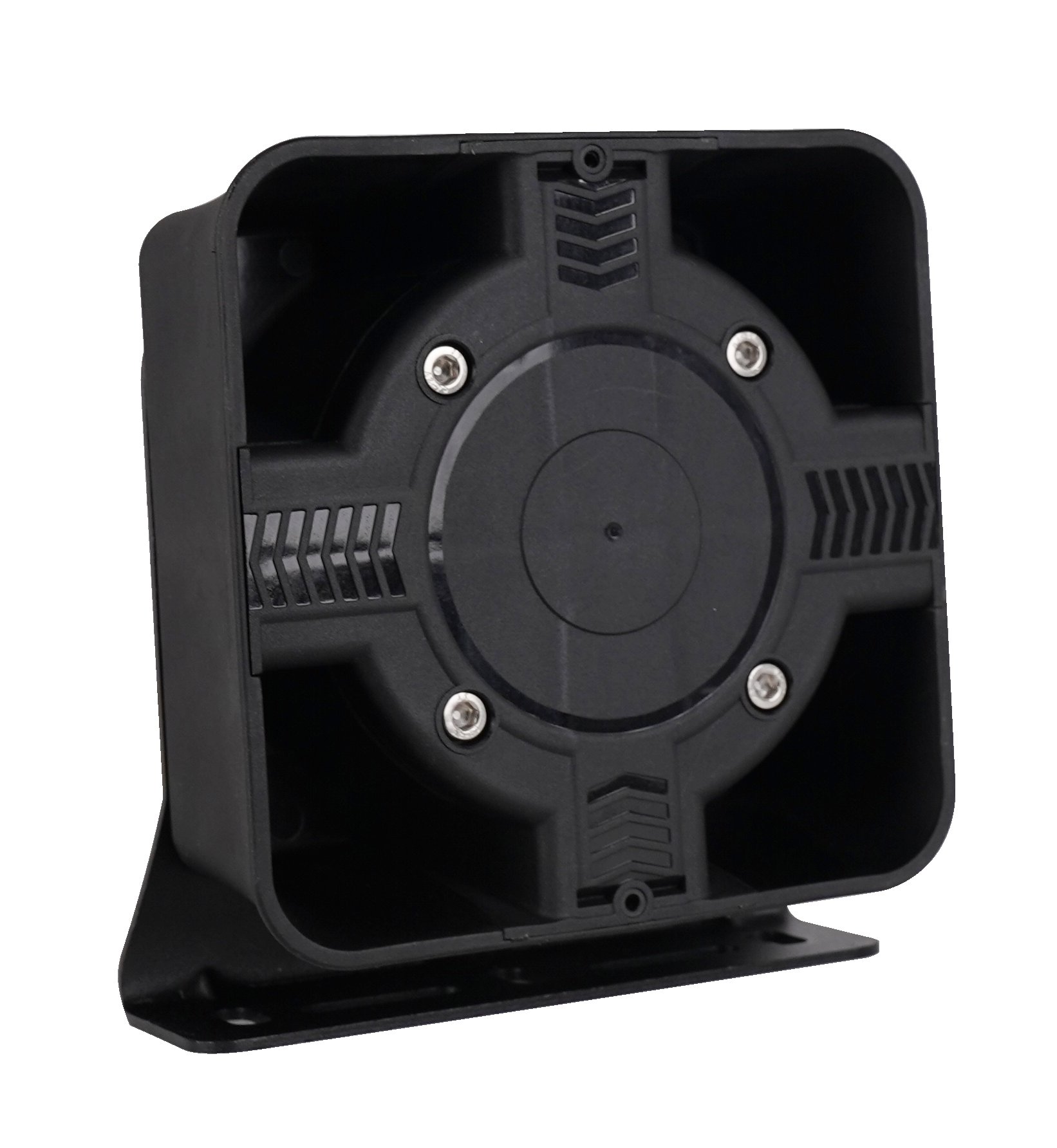

The YD - 100 - 32 speaker stands out with its novel appearance, which not only adds an aesthetic touch but also hints at its modern design concept. Measuring 162×182×81.5 (mm), it has a compact yet sturdy build, making it suitable for a variety of applications.

When it comes to performance, the speaker truly shines. With a rated power of 100W, it can deliver powerful sound output. The rated impedance options of 8Ω/11Ω provide flexibility in system integration, allowing users to match it with different amplifiers. The feed voltage ranges from 29±1V to 33±1V, ensuring stable operation within a certain voltage tolerance.

The frequency response range of 200 - 5000HZ enables the speaker to cover a wide range of audio frequencies, resulting in a rich and balanced sound. What's more, the harmonic distortion is kept to a minimum, with a rate of ≤5%, guaranteeing clear and pure sound quality. The sound pressure level, which is ≤124dB, further attests to its high - volume and high - quality sound capabilities.

This speaker also excels in terms of durability and environmental adaptability. It can operate in a temperature range from - 40℃ to +65℃, making it suitable for use in various harsh environments. Additionally, it is waterproof, corrosion - resistant, and has good sealing properties. These features ensure that the speaker can maintain its performance over time, even in challenging conditions.

In terms of wiring, the connection is straightforward. The brown wire is connected to the positive pole of the speaker, while the brown and white wires are connected to the negative pole.

Overall, its combination of advanced features, excellent sound quality, promising to meet the diverse needs of consumers and industries.
