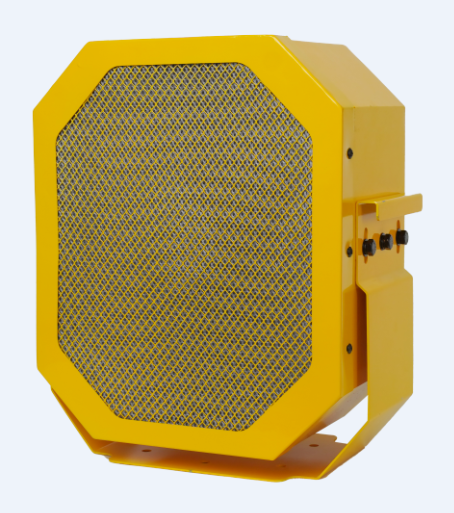

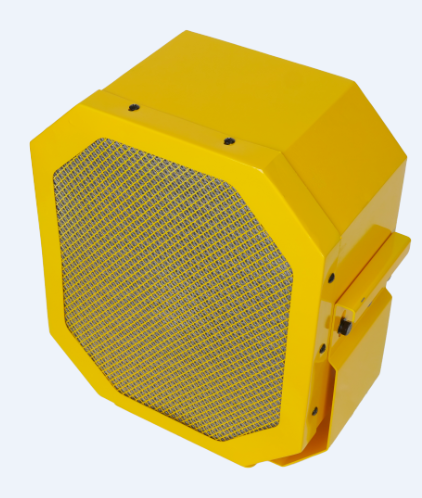

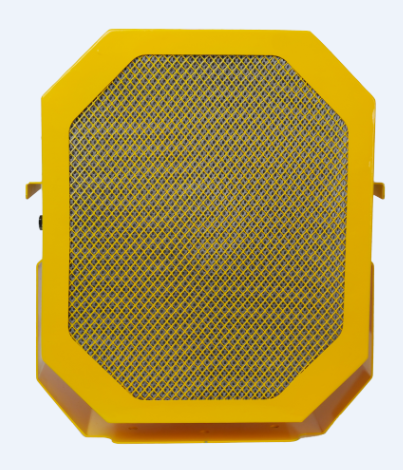

CKY-100-SK01 Vehicle Mounted Directional Strong Sound Broadcasting System

1. The use of a parabolic waveguide surface makes the directionality of the unit sharper, with a sound beam angle of ±8°.
2. Based on the frequency response characteristics of the speaker, a solid-state DSP sound multimedia player is built-in, with a speech clarity of 85%
3. Using the latest integrated digital chip from TDA series. The maximum peak sound pressure level reaches 138dB.

Main performance parameters:

System operating voltage： DC9-36V

Maximum power：100W

Working current：≤15A

Directionality：± 9°

Peak sound pressure level：136 ± 2dB

Speech clarity：85%

Protection level：IP65

Features：Bluetooth, USB, recording and playback, alarm sound, voice broadcasting,  real-time call out

Effective transmission distance：100 meters

Weight：10 ± 1KG

Equipment working environment temperature：-30 ℃ ~55 ℃

External dimensions：342 * 393 * 227mm
