Motorcycle Intelligent Patrol Terminal CS-04-M3

Product Introduction

The motorcycle intelligent patrol terminal is a high-end product that meets the actual needs of front-line road patrols and leads the industry market in all aspects such as appearance structure, production process, and performance indicators. By installing a high-precision, intelligent, and humanized new smart law enforcement evidence collection system on police motorcycles, it can not only dynamically monitor vehicles on the road and collect evidence intelligently, but also meet the needs of remote command and police dispatch. It has achieved an improvement in the utilization rate of police resources, and has a positive role in improving the efficiency of law enforcement and evidence collection, ensuring the safety and smoothness of road traffic order, and further improving the level of road traffic management.

The motorcycle intelligent patrol terminal consists of an integrated capture camera, an evidence collection host, and a control terminal.

Front-end equipment function

Real-time video acquisition and recording function

It has the ability to collect real-time videos around the motorcycle. Multiple 4-megapixel high-definition cameras are integrated on the rear pole of the motorcycle. It has the function of local video recording, which can be stored on the host according to national standards. The storage time is greater than or equal to 7 days, and the encoding format uses H.265/H.264.

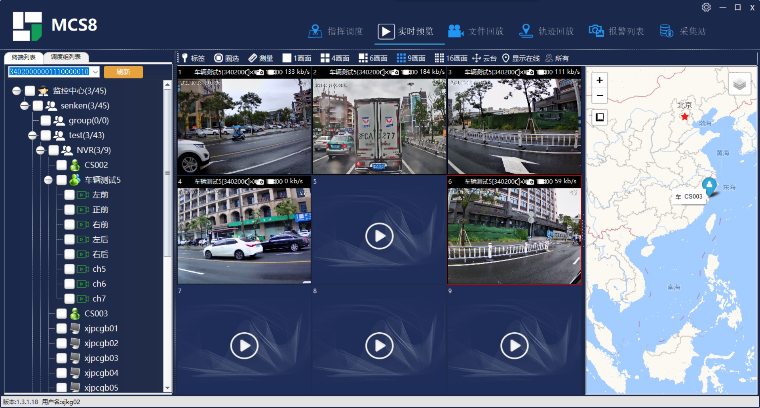

Video Preview

The live images captured by the surveillance camera can be previewed through the display screen of the control terminal.

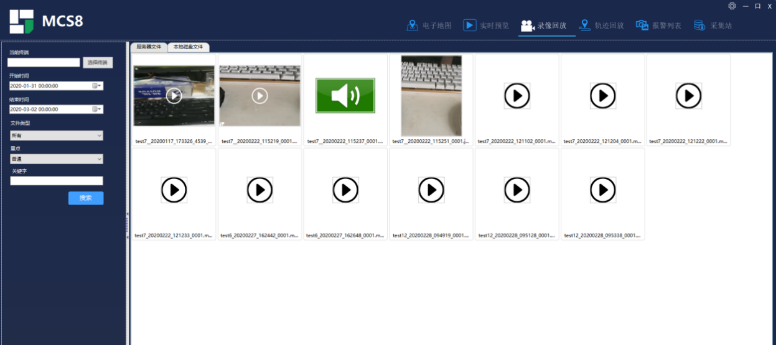

Video playback function

By operating the display screen of the control terminal, you can query and play back all local videos recorded by motorcycle cameras in the "Video Playback" interface, and perform playback operations such as fast forward, slow forward, and drag position on the video. You can also download and export the video to a USB flash drive.

Positioning and time correction function

It has real-time positioning function and supports single Beidou positioning. The positioning information includes latitude and longitude, altitude, vehicle speed, etc., and can automatically calibrate the time through the single Beidou system.

Face capture online control

It has the functions of face detection, capture, storage and upload, and can automatically collect face targets that enter the video screen, and the face photos captured by the motorcycle intelligent patrol terminal can be queried on the upper-level platform. After comparing with the data of the online face control library, the motorcycle control terminal can issue an audible and visual alarm reminder, and display the comparison information of the captured face picture and the face base map in the blacklist library on the software warning information interface.

License plate capture and online control

The motorcycle intelligent patrol terminal can detect vehicles on multiple lanes at the same time, identify license plates and upload photos and information to the superior platform. The superior platform can query the vehicle photos and license plate information captured by the motorcycle intelligent patrol terminal. After comparing with the data of the online license plate control library, the motorcycle control terminal can issue an audible and visual alarm reminder, and display the captured license plate picture and vehicle information in the blacklist library on the software warning information interface.

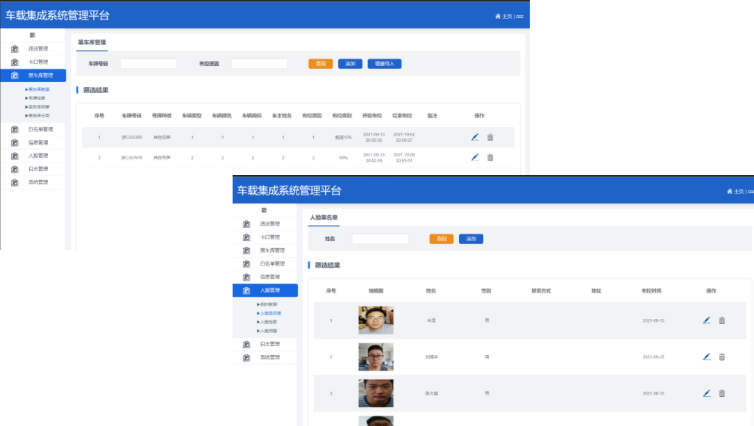

Local license plate control

The platform can download the license plate database data to the evidence collection host, and realize the offline vehicle checkpoint control function in the front-end device. When the controlled vehicle passes through the video surveillance area of ​​any on-board camera, the motorcycle control terminal can issue an audible and visual alarm reminder, and display the captured license plate image and vehicle information in the blacklist library on the software warning information interface.

Automatic capture of illegal parking vehicles

It has the function of automatically capturing illegal parking behaviors. The capturing methods include pictures and videos. The captured vehicle violation pictures and other data can be connected with the local market command platform according to the data upload interface specification of the integrated command platform, and uploaded to the platform in real time through the wireless network.

The system can automatically capture illegally parked vehicles in the video surveillance area, record them at the same time, and record the vehicle's violation information. Through the secondary illegal parking capture mode, it can be combined with the operator's SMS platform to send a moving SMS to the owner after the first round of capture. When the vehicle is captured for the second time at the same location after the specified time, the violation data will be formally submitted as a basis for punishment.

Platform docking function

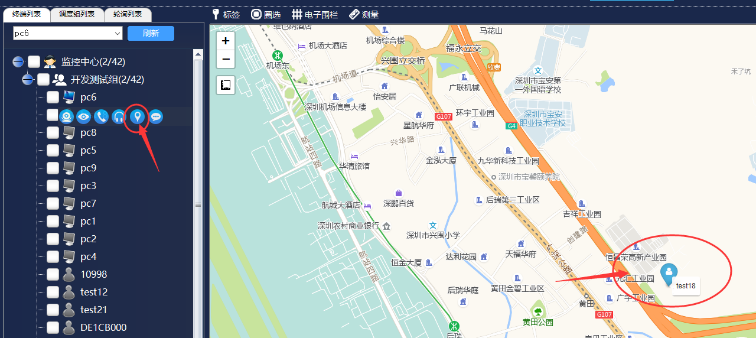

Positioning information reporting

The motorcycle intelligent terminal adopts a single Beidou positioning module, which can collect the current vehicle latitude and longitude positioning information in real time and report it to the superior platform. It can view the vehicle position in real time and query the historical driving trajectory on the electronic map of the superior platform. The communication process and positioning message format comply with the GB/T28181 standard requirements.
