YXPC-DC-960x800 DISPLAY

name

YXPC-DC-960x800 display

1、pixel tube

Pixel pitch: 10mm

Light-emitting point color: 1R1G1B, full color

2、Unit board

Unit board dimensions: 320mm x 160mm

Module rows and columns: 32 dots long x 16 dots high

Scanning method: 1/4 scan

Drive method: Constant current drive

3、Display equipment

Physical Resolution: 80 dots (length) x 96 dots (height) = 7680 dots

Screen Dimensions: 900mm x 1000mm x 80mm, ±3mm tolerance

Screen Weight: Less than 25kg

Viewing Range: ≥150m

Viewing Angle: Horizontal ≥140°; Vertical ≥120°

Ambient Temperature: -20°C to +55°C

Relative Humidity: ≤95 %

IP Rating: IP65

4、powered by

Operating voltage: DC9-36V ±10%

Maximum power consumption: <500W

5、Control method

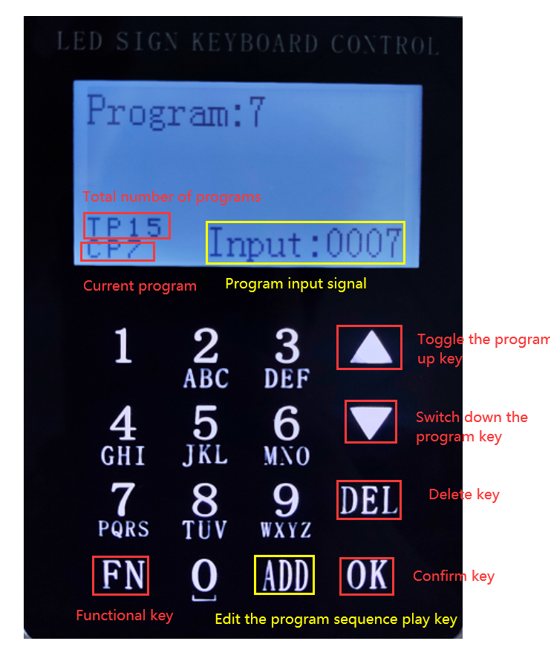

Control mode: button control, U disk control, network port control

6、Main technical parameters

1) Drive method: LED-specific driver

2) Service life: ≥100,000 hours

3) Mean time between failures: ≥50,000 hours

4) Brightness: ≥4500 cd/m²

Material

304 stainless steel
