YXPC-DC-960X480 DISPLAY

2025-08-27
{当前产品的产品关键词轮巡使用}

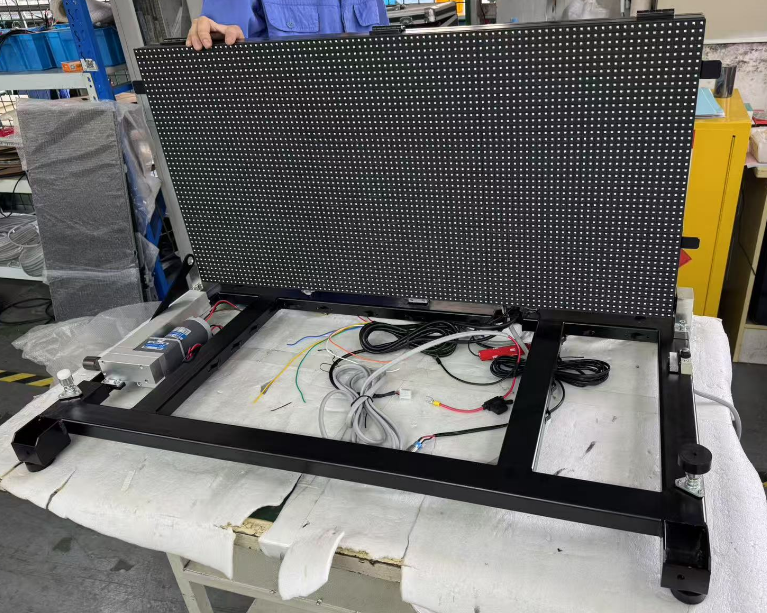

The YXPC-DC-960X480 vehicle-mounted command display system is used as a text and graphic warning system for traffic diversion in mobile occasions such as traffic police duty and engineering rescue. The system consists of two parts: the display screen and the display base.

Dimensions


Technical Parameters

1、pixel tube

Pixel pitch: 10mm

Display color: Red

Physical density: 10,000 dots/m²

2、Unit board

Unit board dimensions: 320mm x 160mm

Module rows and columns: 32 points in length x 16 points in height

3、Full screen display

Display Area: 0.96m (Length) × 0.48m (Height) = 0.4608m²

Physical Resolution: 96 dots (Length) × 48 dots (Height) = 4608 dots

Display Dimensions: 960mm x 480mm x 64mm, ±3mm tolerance

Screen Weight: Less than 35kg

Viewable Distance: 10-150m

Optimal Viewing Angle: Horizontal ±60°, Vertical ±45°

Ambient Temperature: -40°C to +55°C

Relative Humidity: ≤95%

3、powered by

Operating voltage: DC12V±10%

Maximum power consumption: ≤200W

4、Control method

Control method: RS485 control, mobile phone APP control via WIFI

5、Protection level

The system is fully waterproof (IP65) and vibration-resistant

6、Material

Q235 steel

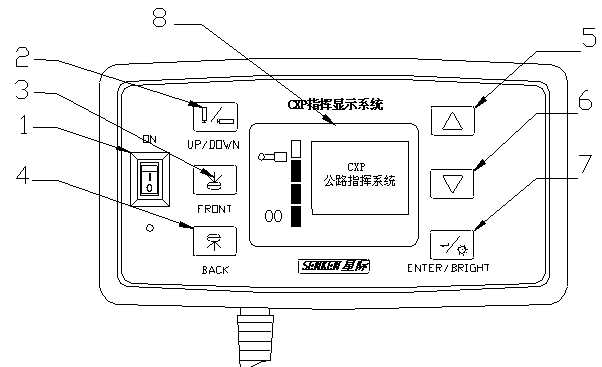

Controller technical parameters


1. Power switch

2. Volume up/down control button

3. Front warning light control button

4. Rear warning light control button/Brightness control button

5. Page down button

6. Page up button

7. Confirm and send control button

8. Text display area

PACKING LIST:

Display*1

Controller*1

User manual*1

PACKING SIZE: 1240*800*230MM

GROSS WEIGHT: Around 80kg
